Three-Step NGW Planetary Gear Speed Reducers

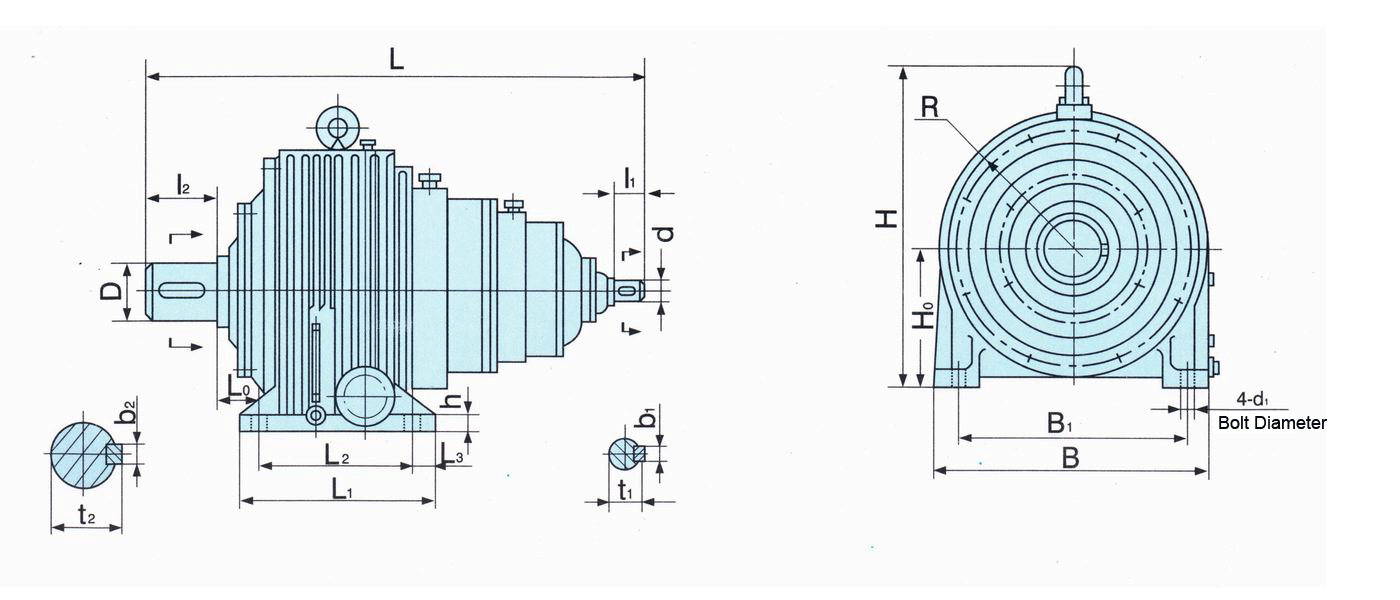

Overall Dimension, Assembling Size and Installing Form
Please Click to Enlarge|
Pede-stal No. |
Type |
Nominal Transmission Ratio (i0) |
Overall Dimension and Center Height |
Axle Extension |
Foundation Size |
Wei-ght (kg) | |||||||||||||||||
|
L |
B |
H |
H0 |
R |
d |
D |
I1 |
I2 |
t1 |
b1 |
t2 |
b2 |
L1 |
L2 |
L3 |
L0 |
B1 |
d1 |
h | ||||
|
mm | |||||||||||||||||||||||
|
7 |
NGW 73 |
180～ |
973.5 |
535 |
574 |
250-0.5 |
250 |
30 |
110 |
55 |
140 |
33 |
8 |
119 |
32 |
375 |
305 |
35 |
80 |
465 |
M30 |
40 |
382 |
|
8 |
NGW 83 |
1071 |
590 |
634 |
280-0.5 |
280 |
35 |
120 |
55 |
160 |
38.5 |
10 |
129 |
32 |
440 |
350 |
45 |
86 |
510 |
M36 |
45 |
505 | |
|
9 |
NGW 93 |
1137.5 |
660 |
721 |
315-0.5 |
315 |
40 |
130 |
70 |
165 |
43.5 |
12 |
140 |
36 |
475 |
385 |
45 |
70.5 |
570 |
M36 |
45 |
627 | |
|
10 |
NGW 103 |
1263 |
745 |
800 |
355-0.5 |
355 |
45 |
150 |
70 |
200 |
49 |
14 |
161 |
40 |
525 |
425 |
50 |
78 |
645 |
M42 |
50 |
962 | |
|
11 |
NGW 113 |
2000 |
1359.5 |
840 |
891 |
400-0.5 |
400 |
50 |
170 |
85 |
200 |
55 |
16 |
181 |
40 |
580 |
480 |
50 |
73 |
740 |
M42 |
55 |
1163 |
|
12 |
NGW 123 |
1504 |
950 |
1013 |
450-0.5 |
455 |
55 |
190 |
85 |
240 |
60 |
16 |
202 |
45 |
680 |
560 |
60 |
73 |
820 |
M48 |
60 |
1756 | |
Transmission Ratio
|
code name of trans-mission ratio |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
|
nominal trans-mission ratio |
180 |
200 |
224 |
250 |
280 |
315 |
355 |
400 |
450 |
500 |
560 |
630 |
710 |
800 |
900 |
1000 |
1120 |
1250 |
1400 |
1600 |
1800 |
2000 |
