Taper and Cylinder Gear Reducers

Introduction

Taper and Cylinder Gear Speed Reducer, with input axles and output axles cross-fixed, are mainly used in both of band transmitting machine and general transporting machine. We also can find them as general transmitting mechanism in coal industry, metallurgy, mining, chemical industry, building material industry, and crude oil industry.

They have high load capacity, low noise, small volume, low weight and high efficiency.

Structure and Lubrication

The first transmission adopts Green Arc Gear, and the second and third one Graduating Line Cylinder Oblique Gear.

Under normal conditions, the gears and bearings are lubricated by oil pool splashed and naturally cooled and rotary lubrication or oil pool lubrication with cooling pipe is used when the actuation balanced temperature of reducers exceeds the expired values or the loading power exceeds the heating power PG1.

Model Description

Please Click to Enlarge

Type: D: belt conveyers; B: two-step transmission; C: three-step transmission; Y: carbide-faced gears; Z: high-frequency hardening surface; K: output axles is hollow, .

Nominal Center Diameter: Actual value, with unit mm.

Nominal Transmission Ratio: Actual value.

Installing Form: Use Roman Number: Ⅰ, Ⅱ, Ⅲ, Ⅳ.

Input Axle Rotation Directions: S: clockwise, N: anticlockwise when watching from input axle direction.

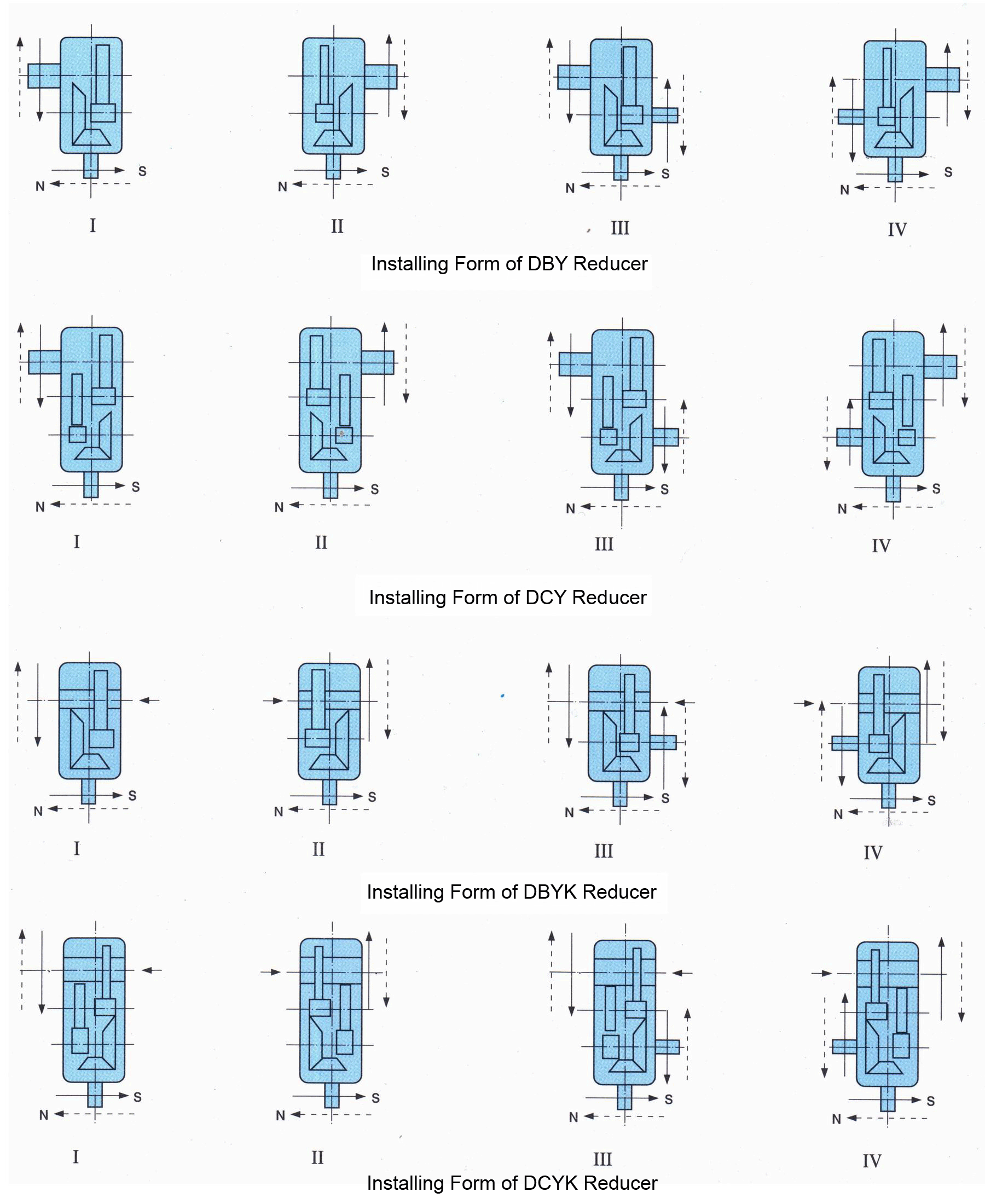

Installing Form

Please Click to Enlarge

Overall and Assembling Size

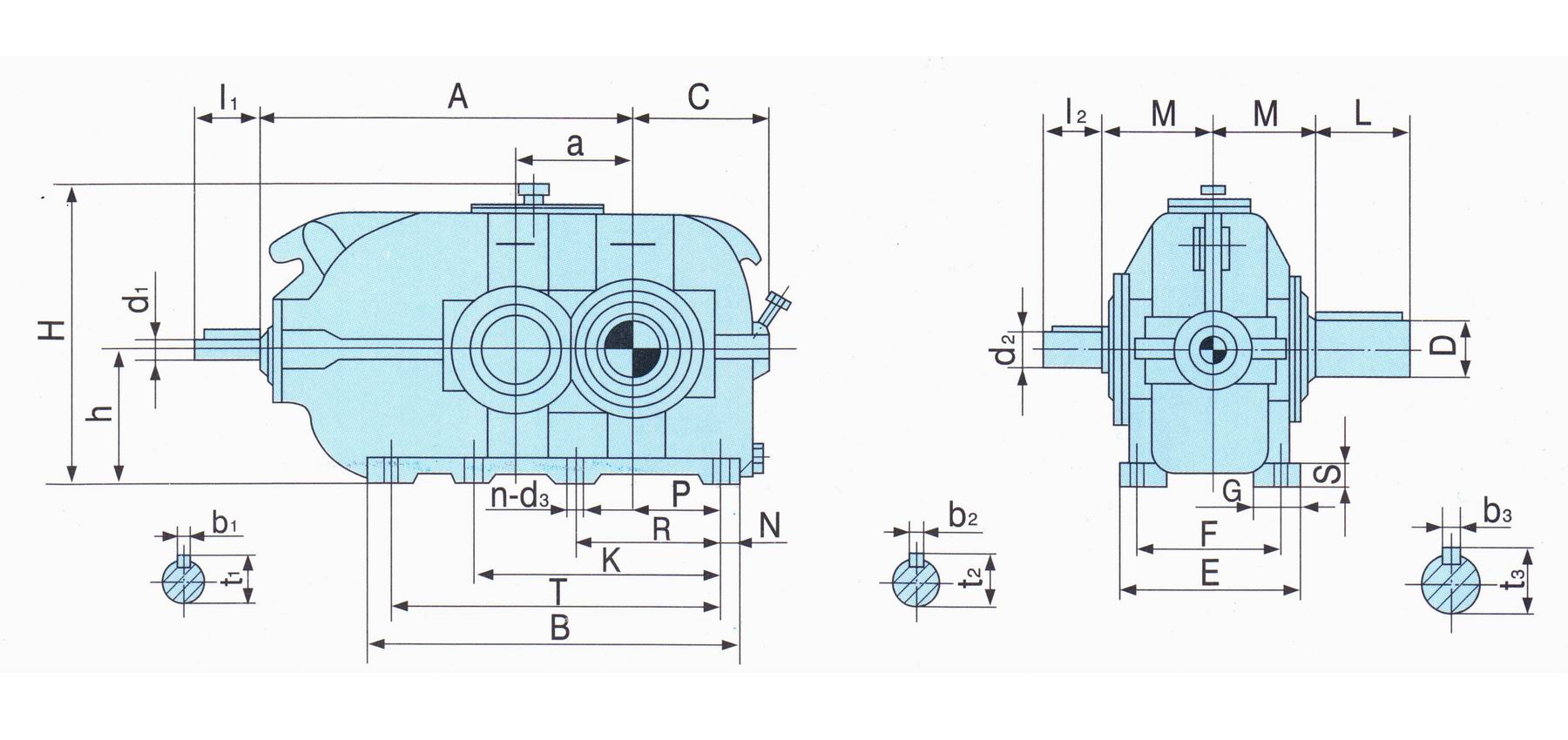

DBY/DBZ Speed Reducers

Please Click to Enlarge

Nominal Center Space (a)	d₁	I₂	d₂	I₂	D	L	A	B	C	E	F	G	S	h	H	M
160	40	110	48	110	70	140	500	500	190	250	210	65	35	180	430	145
180	42		50		80	170	565	565	215	270	230	70	35	200	475	160
200	50		55		90	170	625	625	240	300	250	75	40	225	520	175
224	55		65	140	100	210	705	705	260	320	270	80	45	250	570	190
250	60	140	75	140	110		785	785	290	370	310	90	50	280	626	210
280	65		85	170	120		875	875	325	400	340	100	55	315	702	230
315	75		95	170	140	250	975	975	355	450	380	110	60	355	809	260
355	90	170	100	210	160	300	1085	1085	390	480	410	120	65	400	900	285
400	100	210	110	210	170	300	1215	1215	440	530	460	130	70	450	970	305
450	110		130	250	190	350	1365	1365	490	600	510	140	80	500	1071	345
500	120		150	250	220	350	1525	1525	570	650	560	150	90	560	1210	435
560	130	250	160	300	250	410	1705	1705	610	750	640	160	100	630	1325	475

Nominal Center Space (a)	n-d3	N	P	R	K	T	b1	t1	b2	t2	b3	t3	Average Weight (kg)	Volume of Lubri-cant (L)
160	6-18	30	115	210	-	440	12	43	14	51.5	20	74.5	173	7
180	6-18	30	135	240		505	12	45	14	53.5	22	85	232	9
200	6-23	35	145	255		555	14	53.5	16	59	25	95	305	13
224	6-23	35	165	290		635	16	59	18	69	28	106	415	18
250	6-27	40	180	315		705	18	64	20	79.5	28	116	573	25
280	6-27	45	200	355		785	18	69	22	90	32	127	760	36
315	6-33	50	220	405		875	20	79.5	25	100	36	148	1020	51
355		55	245	450		975	25	95	28	106	40	169	1436	69
400		55	280	510		1105	28	106	28	116	40	179	1966	95
450	8-39	60	315	575	940	1245	28	116	32	137	45	200	2532	130
500	8-39	70	350	645	1050	1385	32	127	36	158	50	231	3633	185
560	8-45	80	390	715	1165	1545	32	137	40	169	56	262	5020	260

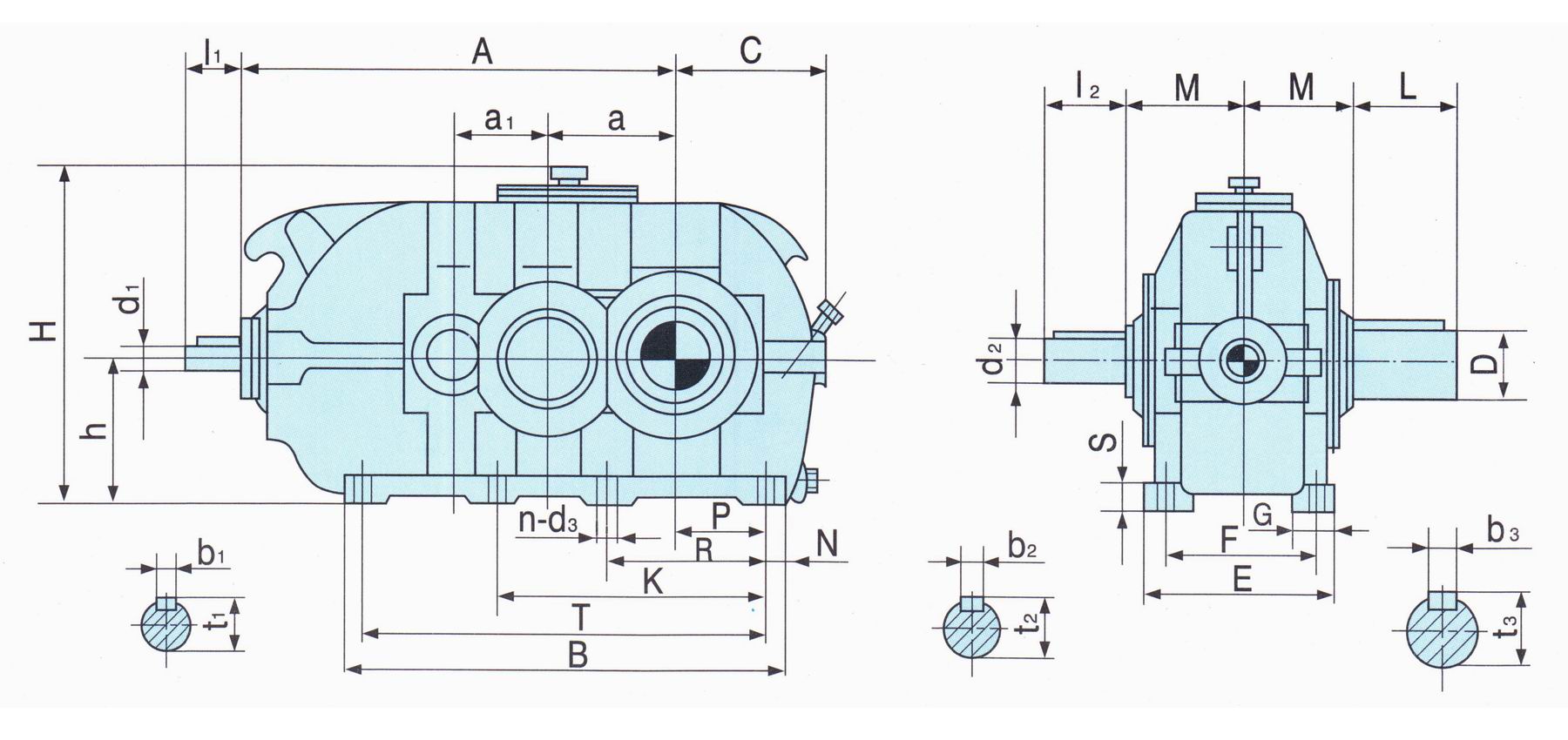

DCY/DCZ Speed Reducers

Please Click to Enlarge

Nominal Center Space (a)	a₁	d₁	I₂	d₂	I₂	D	L	A	B	C	E	F	G	S	h	H	M
160	112	25	60	32	80	70	140	510	555	190	250	210	65	35	180	423	145
180	125	30	80	38	80	80	170	575	625	215	270	230	70	35	200	468	160
200	140	35	80	42	110	90	170	640	685	240	300	250	75	40	225	520	175
224	160	40	110	48		100	210	725	775	260	320	270	80	45	250	570	190
250	180	42		50		110		815	860	290	370	310	90	50	280	626	210
280	200	50		55		120		905	970	325	400	340	100	55	315	702	230
315	224	55		65	140	14	250	1020	1085	355	450	380	110	60	355	809	260
355	250	60	140	75	140	160	300	1140	1220	390	480	410	120	65	400	900	285
400	280	65		85	170	170	300	1272	1355	440	530	460	130	70	450	970	305
450	315	75		95	170	190	350	1425	1520	490	600	510	140	80	500	1065	345
500	355	90	170	100	210	220	350	1585	1690	570	650	560	150	90	560	1208	435
560	400	100	210	110	210	250	410	1775	1895	610	750	640	160	100	630	1325	475
630	450	110		130	250	300	470	1995	2145	675	800	690	170	110	710	1460	525
710	500	120		150	250	340	550	2235	2400	760	900	770	190	125	800	1665	570
800	560	130	250	160	300	400	650	2505	2700	840	1000	870	200	140	900	1870	625

Nominal Center Space (a)	n-d3	N	P	R	K	T	b1	t1	b2	t2	b3	t3	Average Weight (kg)	Volume of Lubri-cant (L)
160	6-18	30	115	210	-	495	8	28	10	35	20	74.5	200	9
180	6-18	30	135	240		565	8	33	10	41	22	85	255	13
200	6-23	35	145	255		615	10	38	12	45	25	95	325	18
224	6-23	35	165	290		705	12	43	14	51.5	28	106	453	25
250	6-27	40	180	315		780	12	45	14	53.5	28	116	586	33
280	6-27	45	200	355		880	14	53.5	16	59	32	127	837	45
315	8-33	50	220	405	655	985	16	59	18	69	36	148	1100	65
355		55	245	450	740	1110	18	64	20	79.5	40	169	1550	90
400		55	280	510	840	1245	18	69	22	90	40	179	1967	125
450	8-39	60	315	575	940	1400	20	79.5	25	100	45	200	2675	180
500	8-39	70	350	645	1050	1550	25	95	28	106	50	231	4340	240
560	8-45	80	390	715	1165	1735	28	106	28	116	56	262	5320	335
630		80	445	800	1305	1985	28	116	32	138	70	314	7170	480
710		90	500	900	1490	2220	32	127	36	158	80	355	9600	690
800		90	560	1100	1680	2520	32	137	40	169	90	417	13340	940

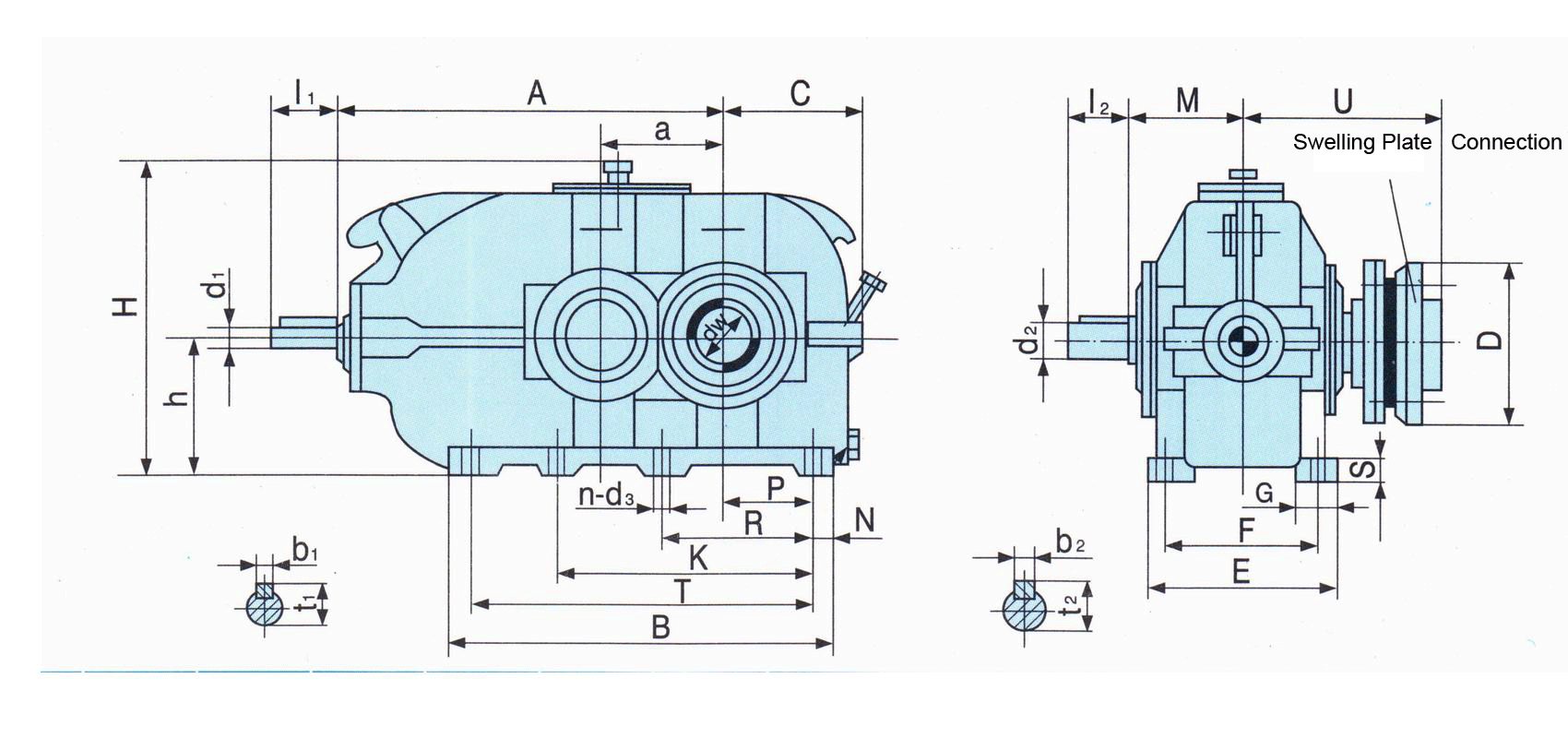

DBYK Speed Reducers

Please Click to Enlarge

Nominal Center Space (a)	d₁	I₁	d₂	I₂	d_w	U	A	B	C	E	F	G	S	h	H	M
160	40	110	48	110	80	225	500	500	190	250	210	65	35	180	430	145
180	42		50		90	250	565	565	215	270	230	70	35	200	475	160
200	50		55		100	275	625	625	240	300	250	75	40	225	520	175
224	55		65	140	110	295	705	705	260	320	270	80	45	250	570	190
250	60	140	75	140	120	325	785	785	290	370	310	90	50	280	626	210
280	65		85	170	135	360	875	875	325	400	340	100	55	315	702	230
315	75		95	170	160	420	975	975	355	450	380	110	60	355	809	260
355	90	170	100	210	180	450	1085	1085	390	480	410	120	65	400	900	285
400	100	210	110	210	200	490	1215	1215	440	530	460	130	70	450	970	305
450	110		130	250	220	550	1365	1365	490	600	510	140	80	500	1071	345
500	120		150	250	280	715	1525	1525	570	650	560	150	90	560	1210	435
560	130	250	160	300	310	760	1705	1705	610	750	640	160	100	630	1325	475

Nominal Center Space (a)	n-d3	N	P	R	K	T	b1	t1	b2	t2	D	Average Weight (kg)	Volume of Lubri-cant (L)	No. of Drawing
160	6-18	30	115	210	-	440	12	43	14	51.5	185	173	7	DBYK160.0
180	6-18	30	135	240		505	12	45	14	53.5	215	232	9	DBYK180.0
200	6-23	35	145	255		555	14	53.5	16	59	230	305	13	DBYK200.0
224	6-23	35	165	290		635	16	59	18	69	263	415	18	DBYK224.0
250	6-27	40	180	315		705	18	64	20	79.5	290	573	25	DBYK250.0
280	6-27	45	200	355		785	18	69	22	90	300	760	36	DBYK280.0
315	6-33	50	220	405		875	20	79.5	25	100	370	1020	51	DBYK315.0
355		55	245	450		975	25	95	28	106	405	1436	69	DBYK355.0
400		55	280	510		1105	28	106	28	116	430	1966	95	DBYK400.0
450	8-39	60	315	575	940	1245	28	116	32	137	460	2532	130	DBYK450.0
500	8-39	70	350	645	1050	1385	32	127	36	158	570	3633	185	DBYK500.0
560	8-45	80	390	715	1165	1545	32	137	40	169	660	5020	260	DBYK560.0

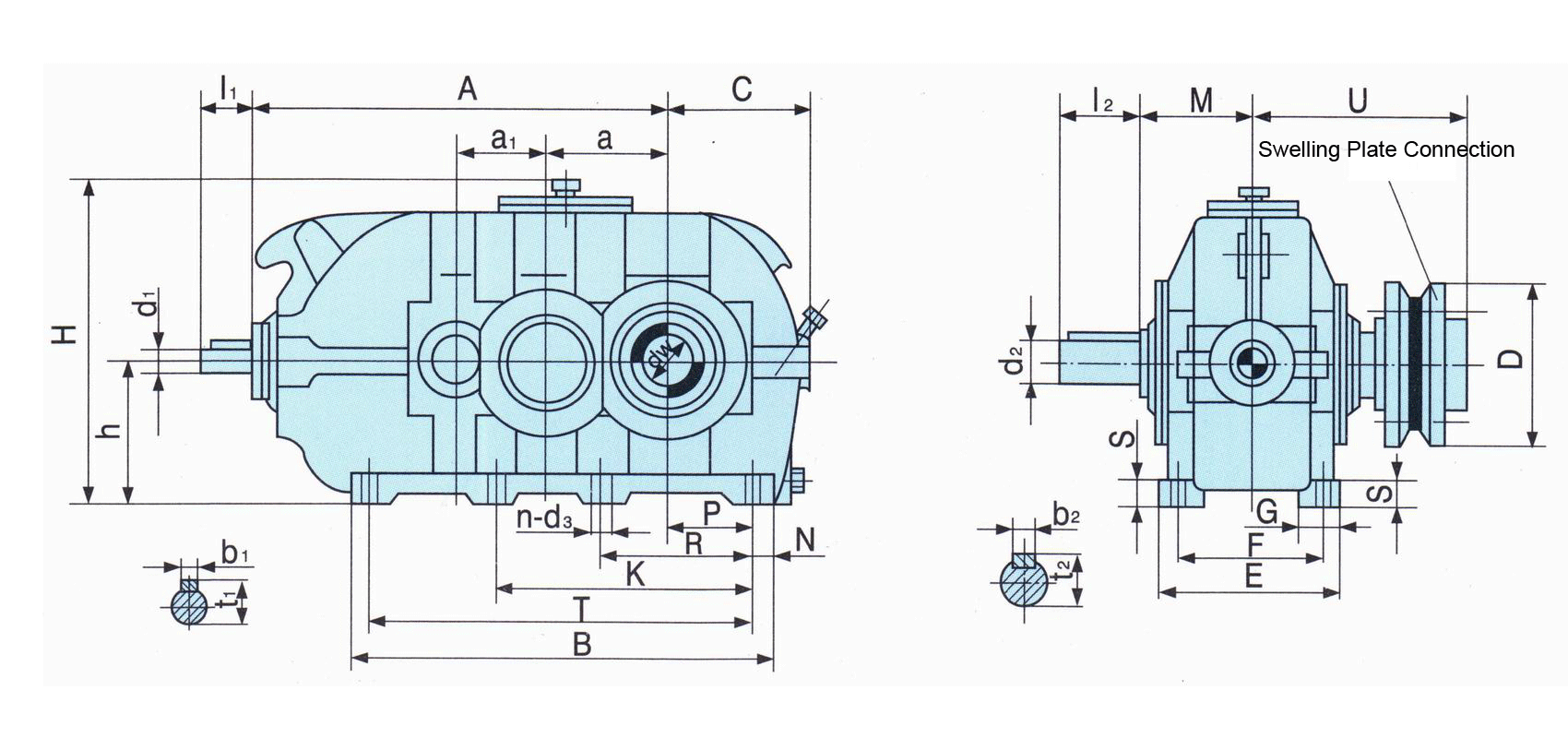

DCYK Speed Reducers

Please Click to Enlarge

Nominal Center Space (a)	a₁	d₁	I₁	d₂	I₂	dw	U	A	B	C	E	F	G	S	h	H	M
160	112	25	60	32	80	80	225	510	555	190	250	210	65	35	180	423	145
180	125	30	80	38	80	90	250	575	625	215	270	230	70	35	200	468	160
200	140	35	80	42	110	100	275	640	685	240	300	250	75	40	225	520	175
224	160	40	110	48		110	295	725	775	260	320	270	80	45	250	570	190
250	180	42		50		120	325	815	860	290	370	310	90	50	280	626	210
280	200	50		55		135	360	905	970	325	400	340	100	55	315	702	230
315	224	55		65	140	160	420	1020	1085	355	450	380	110	60	355	809	260
355	250	60	140	75	140	180	450	1140	1220	390	480	410	120	65	400	900	285
400	280	65		85	170	200	490	1275	1355	440	530	460	130	70	450	970	305
450	315	75		95	170	220	550	1425	1520	490	600	510	140	80	500	1065	345
500	355	90	170	100	210	280	715	1585	1690	570	650	560	150	90	560	1208	435
560	400	100	210	110	210	310	760	1775	1895	610	750	640	160	100	630	1325	475
630	450	110		130	250	340	840	1995	2145	675	800	690	170	110	710	1460	525
710	500	120		150	250	380	890	2235	2400	760	900	770	190	125	800	1665	570
800	560	130	250	160	300	420	955	2505	2700	840	1000	870	200	140	900	1870	625

Nominal Center Space (a)	n-d3	N	P	R	K	T	b1	t1	b2	t2	D	Average Weight (kg)	Volume of Lubri-cant (L)	No. of Drawing
160	6-18	30	115	210	-	495	8	28	10	35	185	200	9	DCYK160.0
180	6-18	30	135	240		565	8	33	10	41	215	255	13	DCYK180.0
200	6-23	35	145	255		615	10	38	12	45	230	325	18	DCYK200.0
224	6-23	35	165	290		705	12	43	14	51.5	263	453	26	DCYK224.0
250	6-27	40	180	315		780	12	45	14	53.5	290	586	33	DCYK250.0
280	6-27	45	200	355		880	14	53.5	16	59	300	837	46	DCYK280.0
315	8-33	50	220	405	655	985	16	59	18	69	370	1100	65	DCYK315.0
355		55	245	450	740	1110	18	64	20	79.5	405	1550	90	DCYK355.0
400		55	280	510	840	1245	18	69	22	90	430	1967	125	DCYK400.0
450	8-39	60	315	575	940	1400	20	79.5	25	100	460	2675	180	DCYK450.0
500	8-39	70	350	645	1050	1550	25	95	28	106	570	4340	240	DCYK500.0
560	8-45	80	390	715	1165	1735	28	106	28	116	660	5320	335	DCYK560.0
630		80	445	800	1305	1985	28	116	32	137	690	7170	480	DCYK630.0
710		90	500	900	1490	2220	32	127	36	158	770	9600	690	DCYK710.0
800		90	560	1100	1680	2520	32	137	40	169	850	13340	940	DCYK800.0

If you want to know more information about the product, please don’t hesitate to contact us.
