Features:
Rubber Strainers is of heat-feed and single screw. The rotational speed is changeable. With headpiece changed, different filtering and rubber-covering press plates or semi-prducts can be produced. So, it has wide-range uses.

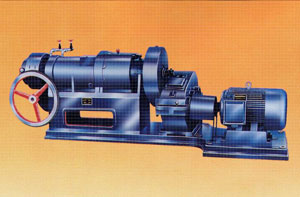

L-150-rubber-strainer.jpg)
Specification
|
Model |
X(J)L-115 |
X(J)L-150 |
|
Screw Dia. (mm) |
115 |
150 |
|
Screw Operational Length (mm) |
55 |
|
|
Screw Length-Width Ratio |
4.80 |
5.24 |
|
Screw Rotational Speed (r/min) |
20,33,46,60 |
43 |
|
Capacity (kg/hour) |
100~420 |
350~450 |
|
Center Height of Feeding Hole (mm) |
950 |
|
|
Over Dimention (L×W×H) (mm) |
2,300×850×1,400 |
2,960×1,110×950 |
|
Weight (kg) |
3,200 |
2,000 |
