Introduction
Beam movement type: tilt back, vertical and slide back, complete vertical motion.
Heating type: platen or dome.
The type of ceter mechanism: BOM, RIB or C type.
The VCL can be driven by chain, hydraulic water or screw according to the user’s requirements.
The paddles of VCL have three type to chose: long paddles, short paddles and middle paddles.
There are three types of movement of unloader: lifting vertically and turning over type, turning over type and moving horizontally type.
The alignment between VCL and center mechanism adopts guiding sleeve construction.
The turning over of middle beam in PCI can be driven electrically or hydraulically.
Specifications
|
Type |
1050 (42``) |
1145 (45``) |
1170 (46``) |
1220 (48``) |
1310 (55``) |
|
Inner Dia. of Shield(mm) |
1,050 |
1,145 |
1,170 |
1,220 |
1,310 |
|
Max. Mold Closing Force(KN) |
1,320 |
1,720 |
2,160 |
1,920 |
2,890 |
|
Dia. of Bead (inch) |
12--16 |
12--18 |
13--18 |
13--20 |
15--20 |
|
Adjusting Distance of Mold(mm) |
178--381 |
200--430 |
200--440 |
300--505 |
245--445 |
|
Heating Method |
Platen |
Platen |
Platen |
Platen |
Dome |
|
Max. Height of Green Tire (mm) |
650 |
650 |
450 |
450 |
760 |
|
Max. Dia. of Green Tire (mm) |
700 |
800 |
870 |
900 |
1,018 |
|
Type |
1360 (55``) |
1525 (63.5``) |
1600 (65.5``) |
1600 (65.5``) |
1680 (65.5``) |
|
Inner Dia. of Shield(mm) |
1,360 |
1,525 |
1,600 |
1,600 |
1,680 |
|
Max. Mold Closing Force(KN) |
2,890 |
4,220 |
4,580 |
4,220 |
4,580 |
|
Dia. of Bead (inch) |
15--20 |
16--24.5 |
16--24.5 |
16--24.5 |
16--24.5 |
|
Adjusting Distance of Mold(mm) |
320--500 |
254--635 |
254--635 |
254--635 |
254--635 |
|
Heating Method |
Platen |
Dome |
Dome |
Platen |
Platen |
|
Max. Height of Green Tire (mm) |
760 |
890 |
890 |
890 |
890 |
|
Max. Dia. of Green Tire (mm) |
1,180 |
1,135 |
1,250 |
1,250 |
1,270 |
|
Type |
1730 (68``) |
1900 (75``) |
2160 (85``) |
2250 (88``) |
2350 (92``) |
|
Inner Dia. of Shield(mm) |
1,730 |
1,900 |
2,160 |
2,250 |
2,350 |
|
Max. Mold Closing Force(KN) |
5,000 |
6,480 |
8,460 |
9,400 |
9,510 |
|
Dia. of Bead (inch) |
20--25 |
24--33 |
24--33 |
24--33 |
24--33 |
|
Adjusting Distance of Mold(mm) |
320--750 |
380--710 |
550--920 |
550--920 |
650--940 |
|
Heating Method |
Platen |
Dome |
Dome |
Dome |
Dome |
|
Max. Height of Green Tire (mm) |
1,110 |
1,200 |
1,600 |
1,600 |
1,600 |
|
Max. Dia. of Green Tire (mm) |
1,400 |
1,630 |
1,850 |
1,900 |
1,900 |
|
Type |
2410 (95``) |
2665 (105``) |
3000 (118``) |
3100 (122``) |
3200 (126``) |
|
Inner Dia. of Shield(mm) |
2,410 |
2,665 |
3,000 |
3,100 |
3,200 |
|
Max. Mold Closing Force(KN) |
9,510 |
13,685 |
17,200 |
17,200 |
18,200 |
|
Dia. of Bead (inch) |
24--33 |
24--40 |
24--35 |
24--35 |
32--52 |
|
Adjusting Distance of Mold(mm) |
650--940 |
600--1200 |
800--1,250 |
800--1,250 |
660--1,220 |
|
Heating Method |
Dome |
Dome |
Dome |
Dome |
Dome |
|
Max. Height of Green Tire (mm) |
1,600 |
1,800 |
1,250 |
1,250 |
950 |
|
Max. Dia. of Green Tire (mm) |
1,955 |
2,100 |
2,450 |
2,500 |
2,700 |

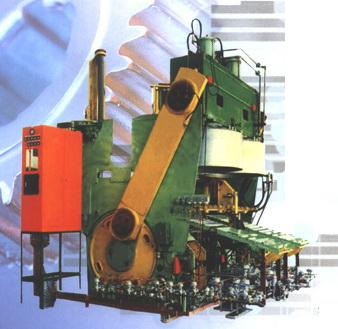

Tilt-back type motion curing press
Slide-back type motion curing press

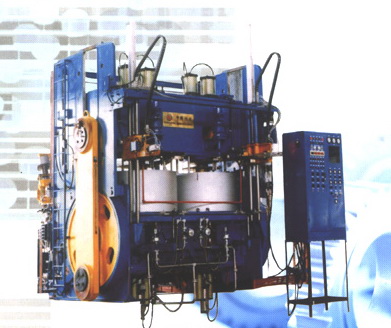

Complete vertical motion curing press
