Introduction
PLC control for whole process, touch screen man-machine interface for technical parameters setting, sizes storage, building process display and trouble-shooting function. It is easy for operation and quick for parameter exchange.
Finger type tun-down device and bladder turn-up device guarantee the building quality of tire completely.
Quick, simple and convenient for accessory parts exchange to meet different sizes of tires requirements.
Usage
The machine is used for first stage building of passenger car radial tires.
|
Type |
LCY-1216 |
LCY-1417 |
LCY-1518 |
|
Bead Dia |
12〞-16〞 |
14〞-17〞 |
15〞-18〞 |
|
Drum Dia (mm) |
Φ362-Φ438 |
Φ380-Φ495 |
Φ413-Φ494.6 |
|
Type of Building Drum |
Radial Expandable building drum | ||
|
Building Drum Width (mm) |
Min 260 ～Max 600 | ||
|
Building Drum Center Height (to the floor)(mm) |
900 | ||
|
Main Shaft Rotary Speed (r.p.m) |
Max 227 | ||
|
Fabric Width (mm) |
Max 880 | ||
|
Single Hanging Length (mm) |
Max 150 | ||
|
Carcass Fabric Roll Diameter (mm) |
Max 1000 | ||
|
Sidewall Roll Diameter (mm) |
Max 1000 | ||
|
Innerliner Roll Diameter (mm) |
Max 1000 | ||
|
Compressed air |
7bar | ||
|
Electrical Control |
Program Control, manual/auto | ||
|
Air Supply (Mpa) |
≥ 0.7 | ||
|
Power Supply |
AC380V±10% 50Hz3Φ | ||
|
Control System |
Program controller, servo control | ||

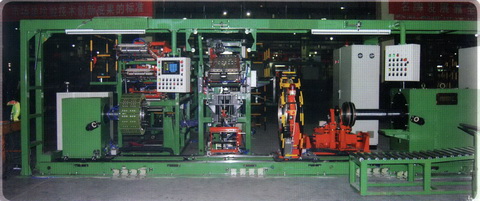

.jpg)
Introduction
PLC control for whole process, touch screen man-machine interface for technical parameters setting, sizes storage, building process display and trouble-shooting function. It is easy for operation and quick for parameter exchange.
Usage
The machine is used for second stage building of passenger car radial tires.
|
Type |
LCE-1216 |
LCE-1417 |
LCE-1518 |
|
Bead Dia |
12〞-16〞 |
14〞-17〞 |
15〞-18〞 |
|
Belt Width (mm) |
Max 300 |
Max 300 |
Max 300 |
|
Application Drum Dia (mm) |
φ450～φ680 |
φ480～φ730 |
φ480～φ780 |
|
Clamping Ring Range |
φ480～φ700 |
φ480～φ800 |
φ480～φ870 |
|
Clamping Device Width (mm) |
100 | ||
|
Shoulder Ring Opening and Closing Range (mm) |
MIN60～MAX600 | ||
|
Width Adjustment Range of Shaping Flange (mm) |
60-600 | ||
|
Main Shaft Center Height (to the floor) (mm) |
920 | ||
|
Main Rotary Shaft Speed (Frequency Convertion) |
30--650r.p.m | ||
|
Cap Ply Strip Width (mm) |
10～15 | ||
|
Max Tread Width (mm) |
300 | ||
|
Belt Applicating Speed (AC servo control) |
Max. 200r.p.m | ||
|
Application Drum Dia (mm) |
|
| |
|
Transfer Ring Dia |
Φ480～Φ800 | ||
|
Belt Server: |
| ||
|
(1)Belt Width Range(mm) |
70～280 | ||
|
(2) Cap Ply Width Range (mm) |
70～280 | ||
|
(3) Material Bobbin Dia. |
Max. Φ1000 | ||
|
Auto Tread Server |
Max. 300×Max.2600 | ||
|
⑴Tread Width and Length (mm) | |||
|
⑵Tread Bobbin Dia (mm) |
Φ1700 | ||
|
⑶Cap ply strip width range (mm) |
10～15 | ||
|
⑷ Cap ply strip bobbin roll (mm) |
Max Φ450 | ||
|
Compressed Air (Mpa) |
7bar | ||
|
Electrical control |
Program control, manual/auto | ||
|
Air Supply |
≥ 0.7 | ||
|
Power Supply |
AC380V±10% 50Hz3Φ | ||
|
Control System |
Program controller and servo control | ||
